Profile Park

A 10-acre greenfield site, situated on the outskirts of Dublin, developed for phased development of 15MW of data centre space.

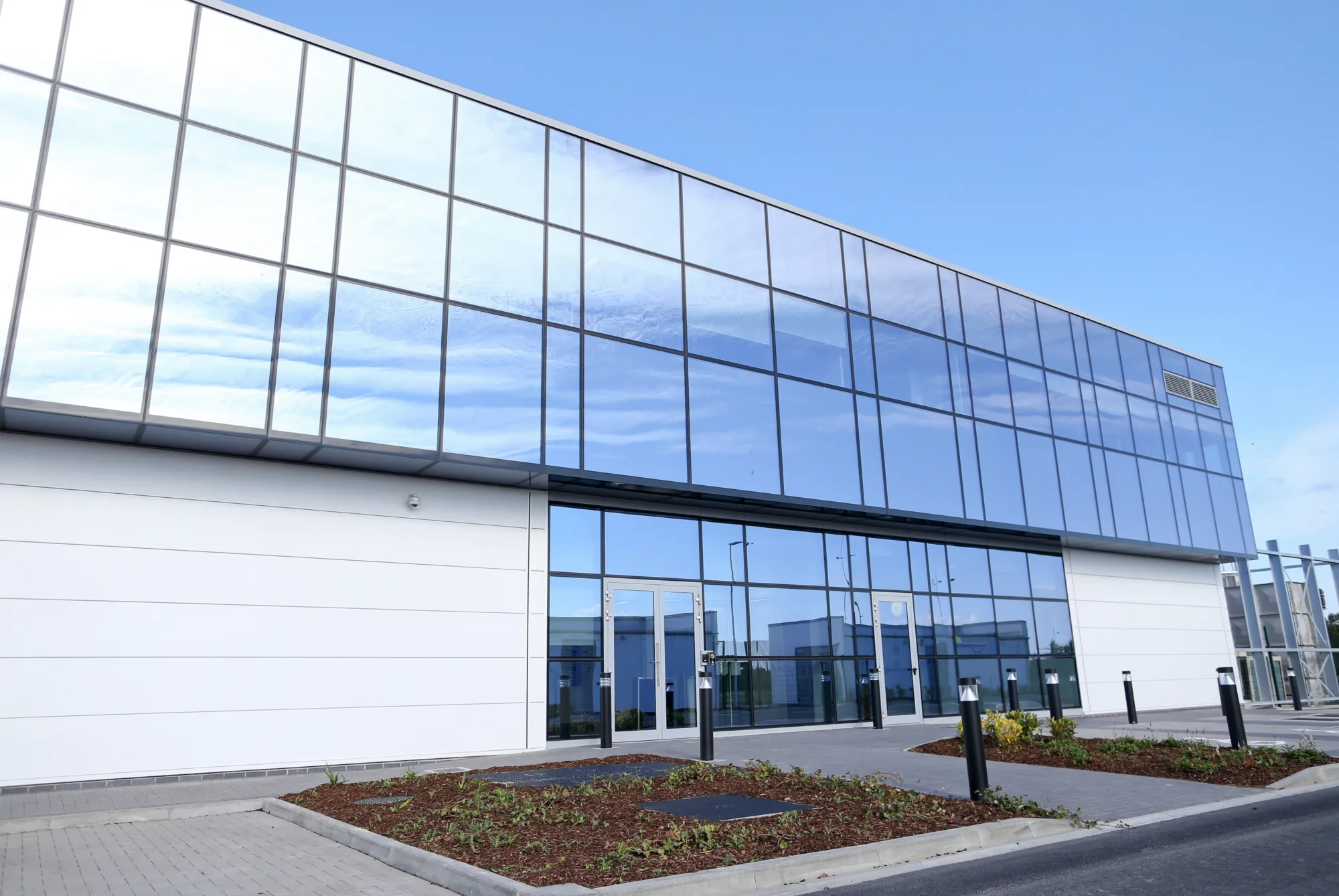

Front of building with windows reflecting the blue sky and wispy clouds

Location

Grangecastle, Dublin, Ireland

Client

Digital Reality

Architect

Nicholas Webb Architects

The project focused on the first phase of a data centre campus, comprising four separate buildings, which when fully built-out would support a total of 15.3MW of critical load. Each building contains two 978 m2 data halls, each supporting 1.9MW across 494 racks.

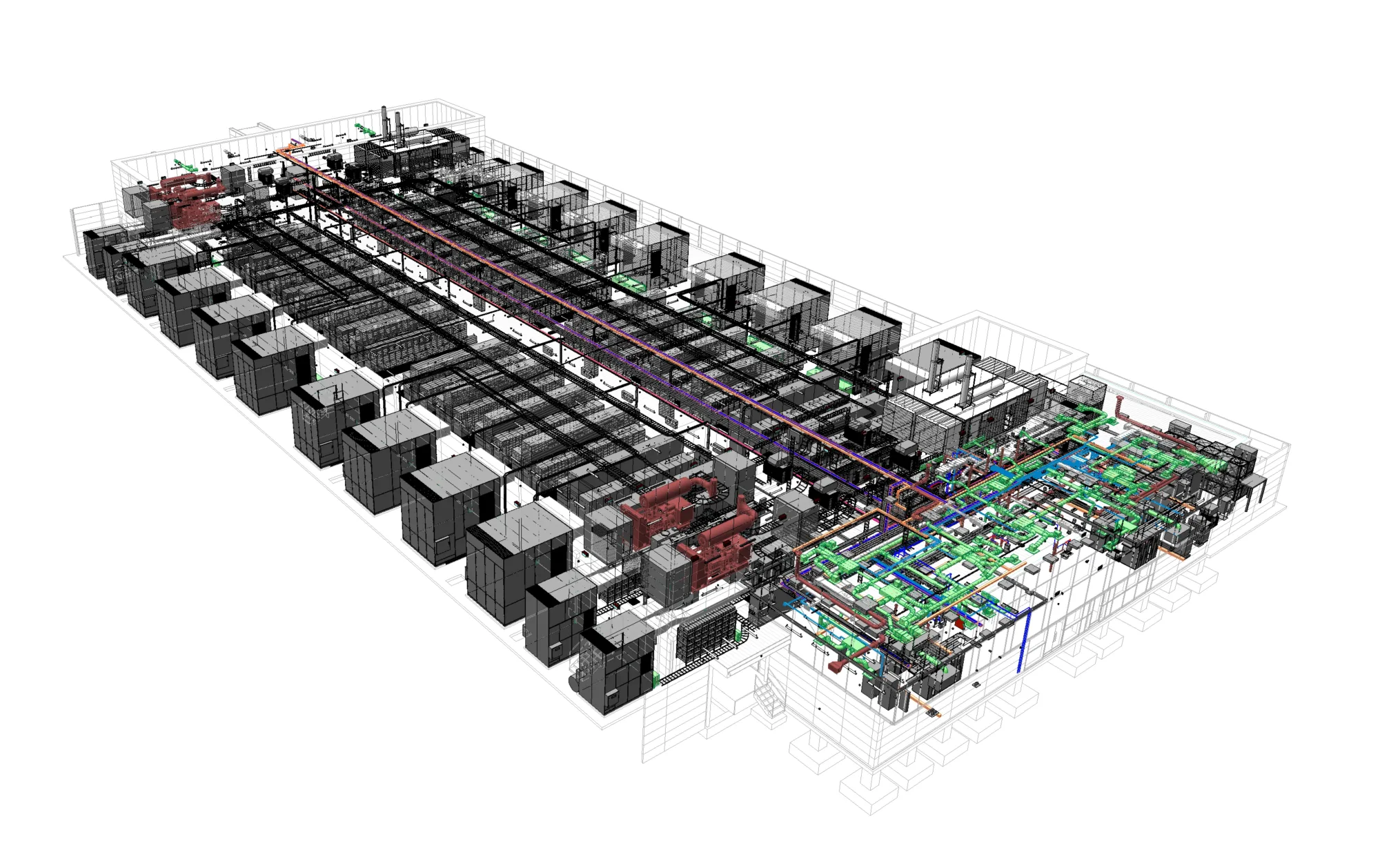

Cooling to the data halls is achieved using ‘Excool’ indirect air-cooling units that work through a combination of mechanical ventilation and adiabatic cooling to deliver the coolth to the data hall.

The climate in Dublin is ideally suited to the use of indirect air cooling. The use of this strategy, together with other energy efficiency measures, achieved a total annualised PUE of 1.15 and a Total WUE of 0.7. The data centre campus achieved BREEAM Excellent rating, and UTI Certified Tier III. Total CUE was 0.0625.

Key fact

Cundall provided multi-disciplinary and specialist Sustainability engineering services to this project.

1/3

Key fact

Ireland’s first Uptime Institute TIER III site for both design and operations.

2/3

Key fact

This was Ireland's first indirect air-cooled data centre.

3/3

Malcolm Howe in front of office building

Malcolm Howe

Technical Partner, Critical Systems

View bio

The project was one of the first to utilise Indirect Air Cooling, and the first ever of this type to be constructed in Ireland and to achieve UTI Tier III certification. This required lengthy engagement with the UTI Assessors, who were not familiar with the technology. The process was an interesting and rewarding one for all concerned.

Awards

Winner

Product Solutions

Uptime Institute Brill Award

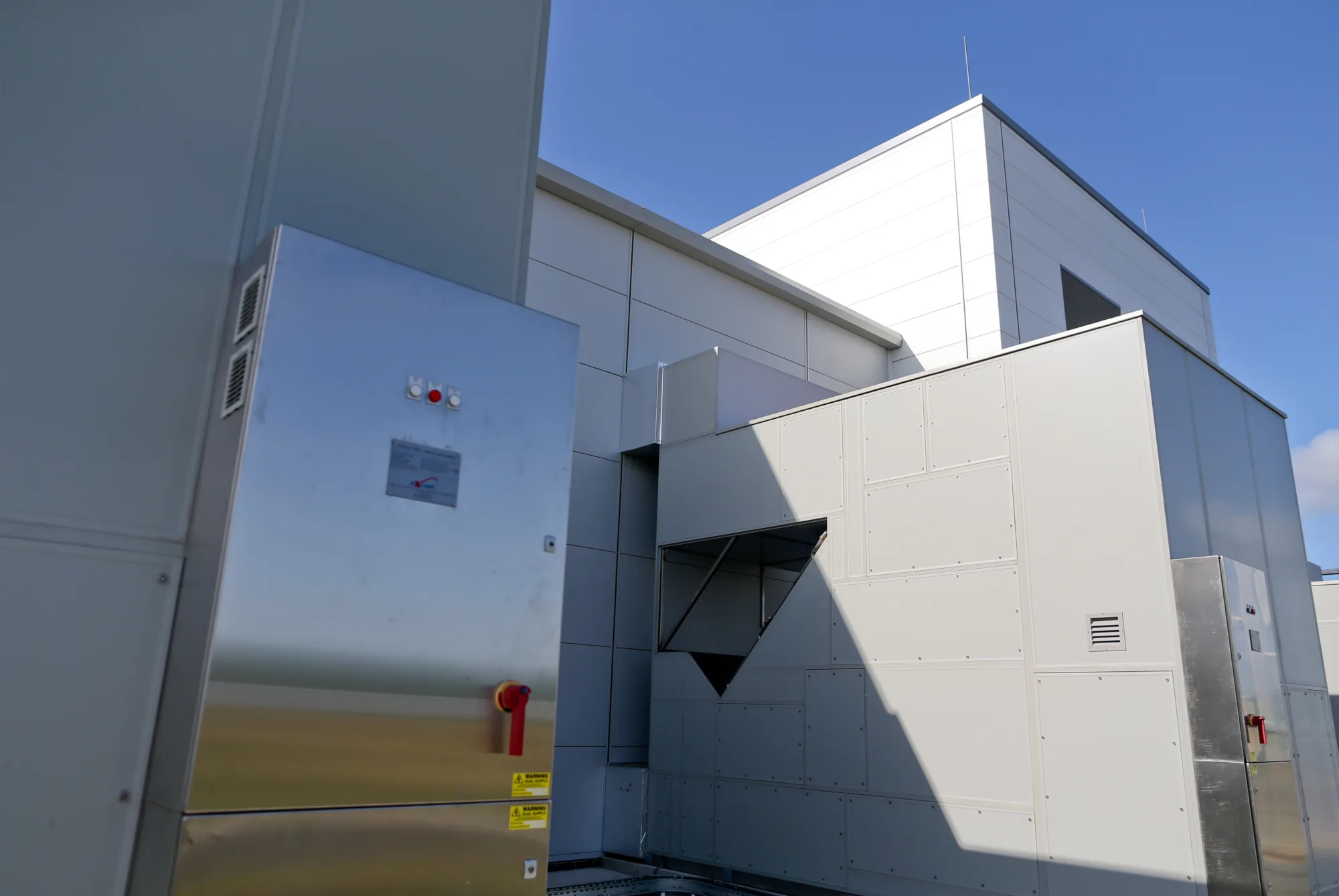

Excool Unit

Photo of Excool air cooling unit
